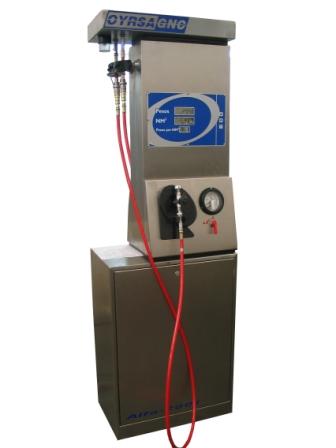

CNG Dispenser

Structural frame and cabinet made of stainless steel with high strength and solidity.
It has two bright digital displays (backlight) on both sides of the cabinet. Holder hose peak load and cast aluminum.
Last generation electronic mass flow meters
Electrical and electronic components under standard classified area.

  • Model: ALFA 2001
  • ID: OYR ALFA 2001
  • Voltage: 220 Vca. + PTA
  • Work pressure: 250 Bar
  • Gas pipe inlet: 1/4” NPT
  • Hoses quantity: 2
  • Filling capacity: Low and high flow.
  • Electrical entry: 1/2" BSPT
  • Displays: 2
  • Quick release valve with stainless steel retention.
  • Working Temperature: -10 ° C / +40 ° C
  • Structure: Stainless steel plate. (AISI 316)


Standard application: NAG 441 (90) Annex 1 (Argentina)

Manufacturing standard: ISO 9001

Design Code: 2001 ALFA OYR

Area Certification: Class 1 Div 1 Group D.


Width: 400 mm

Length: 650 mm

Height: 2000 mm
